Name: Steering: Schematic View
SKU: 1163
Availability: InStock

PART#	DESCRIPTION	QUOTE REQUEST
	Shoulder Type	Add to My Quote List

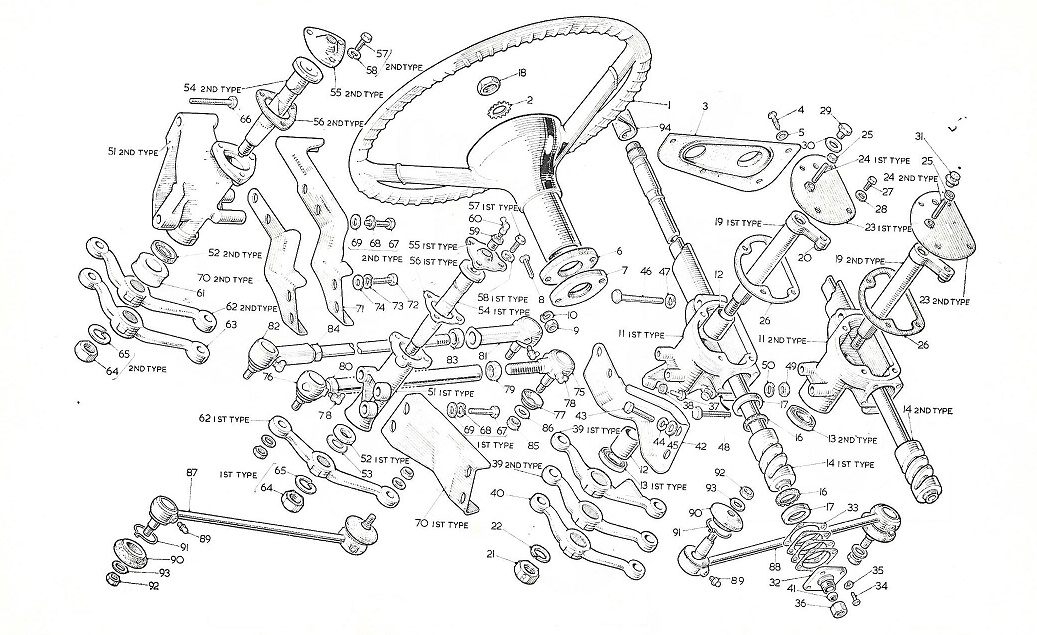

	Steering: Schematic View	Add to My Quote List
1315	Oiler, Steering Cross Tube 540/560	Add to My Quote List
1382	Screw, Wheel to Horn Retainer 540/560	Add to My Quote List
1636	Screw, Support to Mounting Bracket	Add to My Quote List
1612	Shim, Steering Gear Cover (.010)	Add to My Quote List
2406	Gasket, Idler Arm Bracket Cover	Add to My Quote List
1484	Rubber Boot, Tie Rod End 540/560	Add to My Quote List
2270	Rubber Cover, Steering Link Cross Shaft, Shoulder Type	Add to My Quote List
2274	Rubber Cover, Steering Link End,	Add to My Quote List
2484	Boot, Steering Link End 540/560	Add to My Quote List
1601	Oil Seal, Steering Gear 540/560	Add to My Quote List
2407	Seal, Grease Seal Idler 560	Add to My Quote List
2408	Ann, Idler 560	Add to My Quote List
964	Arm Steering Linkage, Pitman (Ref. 20)	Add to My Quote List
2410	Arm, Pinion 560	Add to My Quote List
841	Arm,Idler	Add to My Quote List
2272	End, Steering Linkage Cross Tube Tie Rod, Left, T.H. Thread (Ref. 22) 560	Add to My Quote List
2273	End, Steering Linkage Cross Tie Rod, Right, L.H. Thread (Ref. 22) 560	Add to My Quote List
2632	End, Steering Linkage Cross Tie Rod, Left, R.H. Thread (Ref. 22) 560	Add to My Quote List
2633	End, Steering Tie Rod, Right 560	Add to My Quote List
2593	Ann. Steering Linkage Idler (Ref. 21) 560	Add to My Quote List
958	Shaft, Steering Linkage Idler Arm (Ref. 20)	Add to My Quote List
2116	Tie Rod End Left 560	Add to My Quote List
2117	Tie Rod End Right 560	Add to My Quote List
957	Idler Body Assembly, (Rebuilt). Exchange Only ($70 core charge)	Add to My Quote List
2402	Idler Body Assembly, (Rebuilt).Exch. Only ($70 core charge) 560	Add to My Quote List
2454	Gear, Steering , Rebuilt Exchange Only (+$70.00 Refundable Core Charge )	Add to My Quote List
