Name: Carburetor, Linkage and Controls
SKU: 1112
Availability: InStock

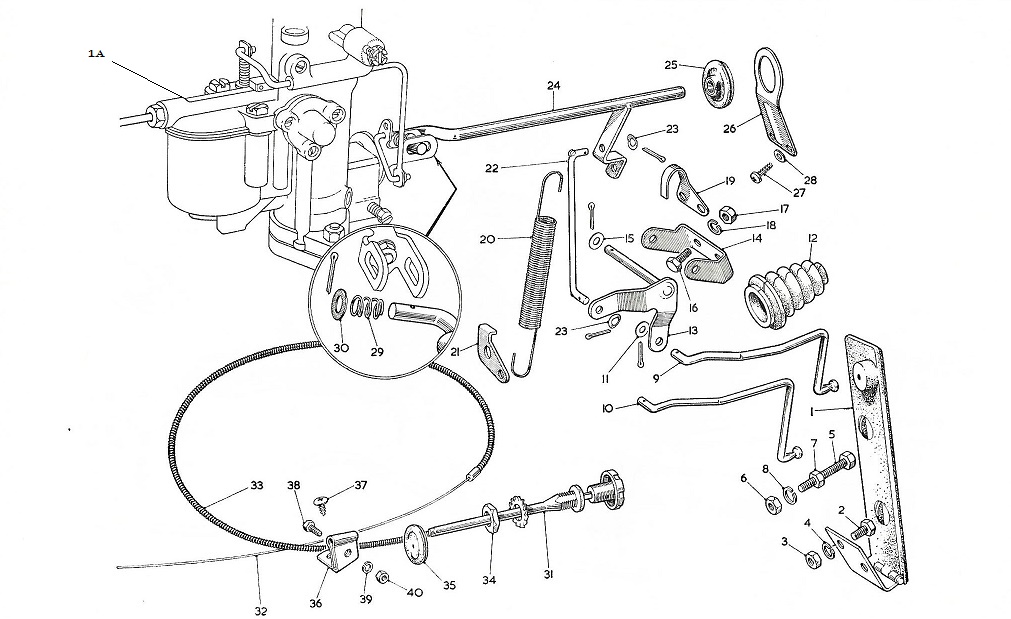

Key		DESCRIPTION	QUOTE REQUEST
		Carburetor, Linkage and Controls	Add to My Quote List
2-4		Bolt, Nut, Washer, Accelerator Mounting, Inquire	Add to My Quote List
5-8		Bolt, Nuts, washer, Accelerator Stop, Inquire	Add to My Quote List
9, 10		Linkage, Accelerator to Pivot, Inquire	Add to My Quote List
11		Washer, Pivot, Inquire	Add to My Quote List
13		Pivot, Accelerator Linkage, Inquire	Add to My Quote List
14		Pivot Shaft Support, Accelerator Linkage, Inquire	Add to My Quote List
15		Washer, Pivot shaft, Inquire	Add to My Quote List
16-18		Screw, Pivot shaft bracket mounting, Inquire	Add to My Quote List
19		Stop, Inquire	Add to My Quote List
21		Retainer, Accelerator Spring, Inquire	Add to My Quote List
22		Linkage, Pivot to Accelerator Shaft Linkage, Inquire	Add to My Quote List
24		Accelerator Shaft, Inquire	Add to My Quote List
36		Bracket, Choke Cable, Inquire	Add to My Quote List
		Mounting Hardware, Choke Cable Bracket, Inquire	Add to My Quote List
35	1922	Choke Cable Grommet 540/560	Add to My Quote List
1D	2381	Gasket, Carburetor to Manifold 540/560	Add to My Quote List
20	2447	Spring, Accelerator Return	Add to My Quote List
25	5552	Grommet, Bearing for Accelerator Shaft	Add to My Quote List
1C	1157	Bushing Throttle Shaft Repair 540/560	Add to My Quote List
12	1914	Boot, Pedal Rod 540/560	Add to My Quote List
1C	853	Spacer 540/560	Add to My Quote List
1B	2471	Carburetor Repair Kit (Major Overhaul) 560	Add to My Quote List
1B	2037	Repair Kit, Carburetor, Major 540	Add to My Quote List
1	1917	Pedal, Accelerator 540/560	Add to My Quote List
31-34	2679	Cable, Choke Control	Add to My Quote List
1A	1794	Carburetor Factory Rebuilt, Exchange($70 core exchange) 540	Add to My Quote List
1A	2465	Carburetor Factory Rebuilt, Exchange($70 core exchange) 560	Add to My Quote List
